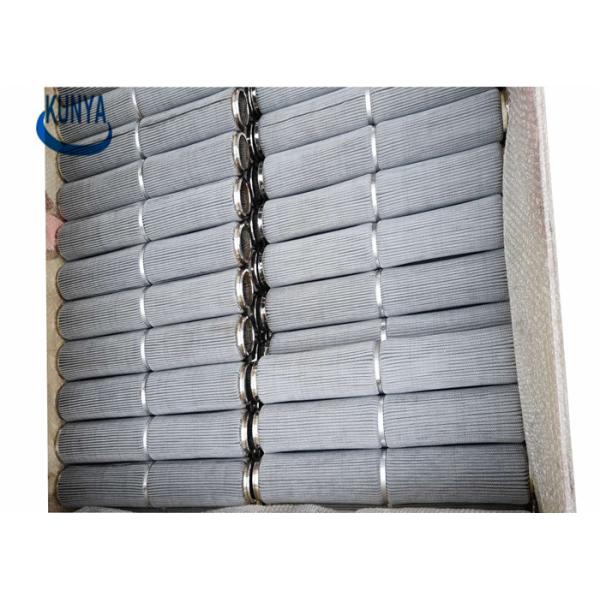

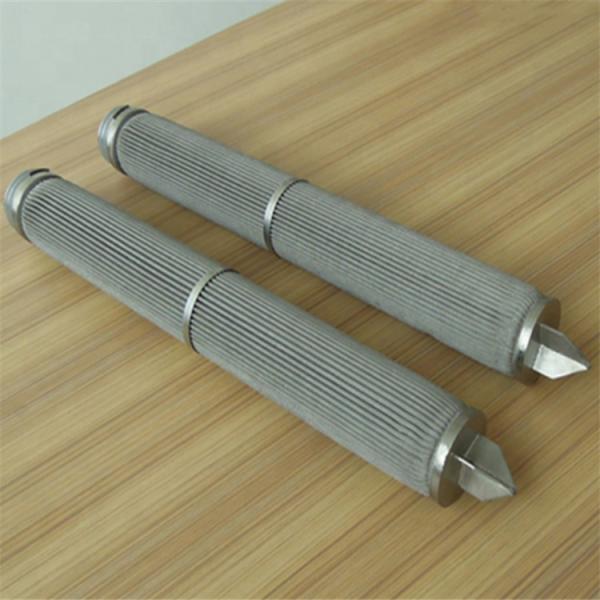

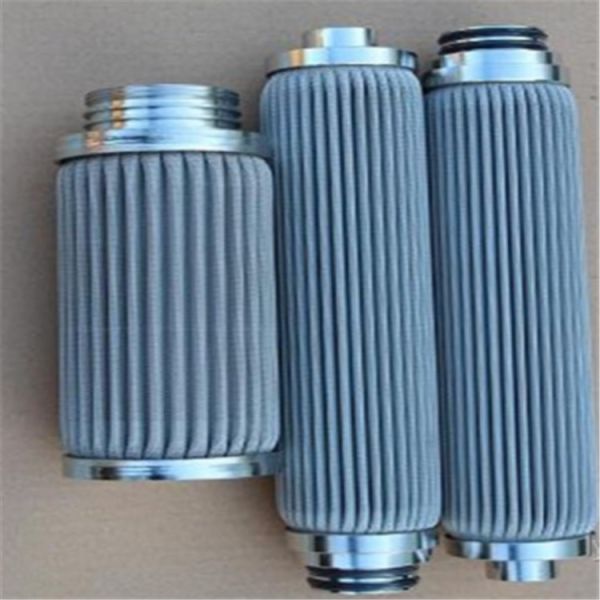

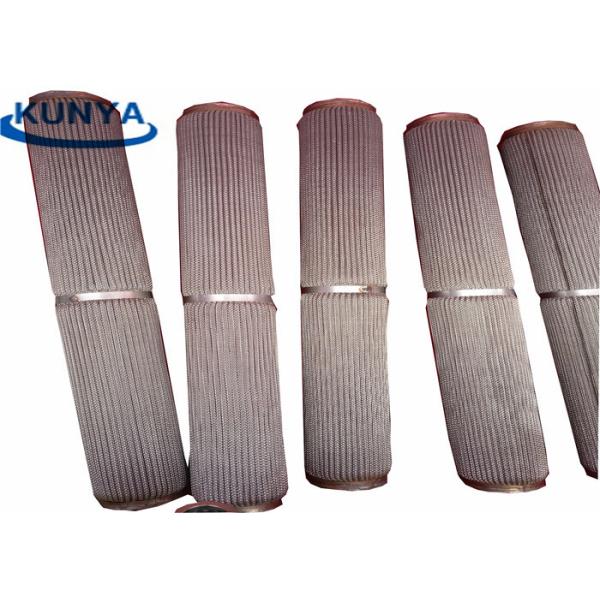

High Porosity Up To 90% And High Permeability sinter Metal Fiber Felt Filter Cartridge

High Porosity Up To 90% And High Permeability Sinter Metal Fiber Felt Filter Cartridge

Sinter metal fiber felt filter is made of overseas stainless steel fiber as raw material, and it is a high porosity porous deep filtration material with process of non-spinning, folding of the metal fiber.

Sintered metal fiber felt Cartridge original uses imported stainless steel fiber as raw material. After non-woven laying and lamination of metal fiber, it is made into porous deep filter material by high-temperature vacuum sintering. Its most prominent feature is high porosity. Since the diameter of the metal fiber is very uniform, the pore size distribution is limited to a very narrow range, and the metal fiber felt provides good gas permeability while ensuring filtration precision. The metal fibers also increase the filtration area by folding, thereby increasing the amount of filter dirt.

Sinter Metal Fiber Felt Filter Cartridge Features
– High porosity up to 90% and high permeability
– With stable pore shape due to sinter processing
– Low pressure drop
– High dirt holding capacity
– High temperature and pressure resistance
– Corrosion resistance

Sinter Metal Fiber Felt Filter Cartridge Specifications
– Dimensions: Wrought into tubes, cartridges or disc, plain, pleated or Customized
– Liquid filtration precision: 3 ~ 200μm
– Gas filtration precision: up to 0.1μm

Materials of Construction
Stainless steels (304L, 316L)

Liquid Filter Element Typical application parameters:

1. Working pressure: 30MPa;

2. Operating temperature: 300°C;

3. Pollution carrying capacity :16.9~41mg/cm2

Liquid Filter Element connection:

Standard interface (such as 222, 220, 226) quick connection, threaded connection, flange connection, tie rod connection, special custom interface.

Liquid Filter Element Main Uses:

1. Filtration of polymer melt in the production of polyester, filament, short filament and thin film;

2. High temperature gas and steam filtration;

3. Filtration of high-temperature liquid and viscous liquid.

Sinter Metal Fiber Felt Filter Cartridge Application

Stainless steel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
12. Pharmaceutical
